New Fmworld 854A 85HP 4WD Paddy Field Tractor with Cabin and Agricultural Implements
Wd504 Harvesting Machinery Agricultural Walking Farm Tractor

Wholesale New Agricultural Tractor Farm Machinery

Agricultural Walking Farm Tractor with ISO Certification

Agricultural Tractors for Sale Zambia with Tractors Parts

Factory Price 4WD EPA Engine Working Tractors Agriculture Compact Equipment Small Farm Tractor

Mechanical Disc Brake Agricultural Walking Farm Tractor

Four Wheels Farm Machinery Agricultural Tractor

Easy Operation Agricultural Tractor with ISO Certification

Red/Black Color Agricultural Walking Farm Tractor with ISO Certification

Standard Tested Farm Machinery Agricultural Tractor

Gear Drive Farm Machinery Agricultural Tractor

Double Clutch Agricultural Walking Farm Tractor

Wd High Quality China Supplier Farming Tractor, 100HP Agriculture Machinery Equipment Tractor

Fmworld Farm Tractor 130HP (WD1304M)

45HP Farm Tractors for Sale South Africa

One Year Service Chinese Small Farm Tractors

Wd Hot Sale 100HP Farm Walking Tractor for Wheat/Rice/Soybean/Corn
Wd Hot Sale 100HP Farm Walking Tractor for
Wd Hot Sale New Type Agricultural Tractor Hot Sale

Wd 75HP Farm Agricultural Garden Tractor Farm Tractor for Sale in Thailand

45HP Farm Tractor Agricultural Witha/C Cabin

Product Parameters

Model		Tavol-904
Machine parameters	Type	4×4
	Rated Traction( KN)	10.5
	PTO Max Power (KW)	43
	Dimensions(mm)	4100×1880×2650
Wheelbase(mm)		2016
Track(mm)	Front wheel(mm)	1350/1450/1550
	Rear wheel(mm)	1300-1500
Ground clearance(mm)	Minimum ground clearance(mm)	400
Minimum turning cricle radius	Use unilateral braking	≤4.0
	Not unilateral braking	≤4.6
Minimum use quality		2270
Gearbox	12F+12R Shuttle Shift
Steering System	hydraulic steering gear
Drive Train	Clutch	double acting clutch
Working equipment	Maximum lifting force at 610mm(KN)	≥12
	Suspension mechanism	Three-piont suspension type 1
PTO shaft	PTO Spedd(r/min)	540/760/1000
Tire	Front wheel specifications	8.3-20
	Rear wheel specifications	12.4-28
Engine	Type	Inline, 4 stroke, Water cooled
	Cylinder	4
Optional	Cabin	AC/Heater
	Roll bar
	Canopy
This parameter table is for reference only, everything is based on actual products

Brand Agriculture Mini Tractor 70HP 80HP 90HP 100HP 120HP 150HP 180HP with Cabin 4WD 12+12 Shift Farm Tractors Machine

Model NO.

70hp tractor

Type

Wheel Tractor

Usage

Farm Tractor, Garden Tractor, Lawn Tractor

Certification

ISO, CE, EPA, CCC, ISO/TS16949

Drive Wheel

4WD

Emission Standard

Euro V

Fuel

Hydraulic

Service Life

6-10 Years

Size

Medium

Color

Customized

Condition

New

Wheel Drive

4*4

Engine Brand

Yto, Xichai, Laidong

Pto

540/760/1000

Tyre Size

650-16/11.2-24, 750-16/12.4-24, 830-20/12.4-28

Model

Tavol-704

Rated Traction(kN)

10.5

Pto Max Power(Kw)

43

Dimensions

3550*1450*2150

R Wheel Tread mm

960-1300

Wheel Base mm

1910

Gearbox

8+8/12+12

Frout Wheel Specifications

8.3-20

Rear Wheel Specifications

12.4-28

Cylinder

4

Maximum Lifting Force at 610mm(kN)

12

Transport Package

Iron Frame + Wooden Box

Specification

70hp

Trademark

Tavol

Origin

Shangdong China

HS Code

8701921000

Production Capacity

5000 Pieces Per Years

Packaging & Delivery

Package Size

6200.00cm * 2650.00cm * 3280.00cm

Package Gross Weight

3000.000kg

Tractor with Cabin (With AC & heater)

70hp, 12F+12R shift, Shuttle stage clutch,

4 Cylinder engine
Engine Brand: YTO, XICHAI, LAIDONG
Tyre Size: 650-16/11.2-24, 750-16/12.4-24, 830-20/12.4-28, 280/70R20-380/85R24
(You can choose the size and type of tire according to your needs)
Hydraulic 3 point linkage
PTO speed: 540/760
2 way hydraulic output
With front and rear ballast.
Color and logo depends on customer's request

Wd504 Harvesting Machinery Agricultural Walking Farm Tractor_CE Approved Garden Full Container Modern 160HP Agriculture Equipment Wheel Tractor

Horse Power	160hp
Wheel Driver	4
Engine	6 cylinder engine
Clutch	Double cultch
Tire	Front  tire14.9-26 Rear tire18.4-38
Pto Speed	540/1000rpm
Shift	16F+8R

Calibration traction			25.7KN
Power output shaft maximum power			100kw
Shape		Long (front counterweight to rear suspension)	4910mm
		Width	2190mm
		High (to muffler)	3120mm
Wheelbase			2630mm
Size track		Front wheel	2090mm
		Rear wheel	1630-2230mm
Ground clearance		Minimum ground clearance	495mm

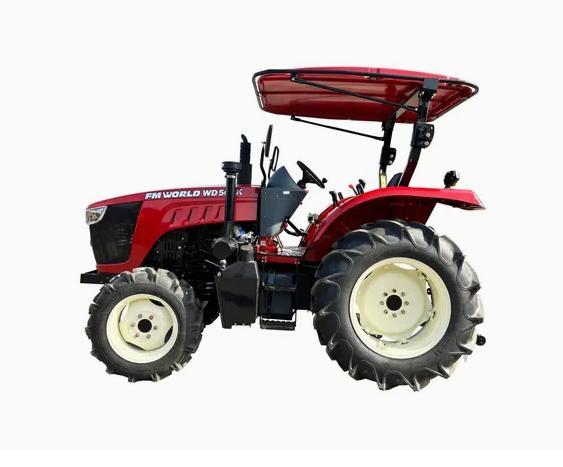

Wd504 Harvesting Machinery Agricultural Walking Farm Tractor

1.High quality engine with strong power but low fuel consumption
2.Adopt  transmission 8F+8R shuttle for easier operation,which caters to different needs
3.Axles with outstanding sealing perforamnce ensure tractors working well in water or deep muddy field
4.By adopting dual clutch, walking and PTO power are seperated which brings a more flexible working style
5.High quality bearings are used for long prolonging working life
6.ROPS&Canopy are equipped as standard, while cabin and air brake are optional for comfor and road transport

Parameter



Model		WD454K	WD504K
Structure		4*4
Engine	Engine Power@speed(HP)	45@2400	50@2400
	Engine Type	4 Cylinders, Inline, Vertical, Water-cooled, diesel engine
	Fuel Tank Capacity(L)	70
	Battery	12V
	Air Cleaner	Dry
Transmission	Gears	Shuttle 8F + 8R
	Clutch	Dual Clutch
	Brake	Mechanical disc
	Differential Lock	Pin Type, Mechanical
PTO System	Direction of turning	Clockwise,viewed from tractor rear
	Diameter of PTO Shaft(mm)	35
	PTO Speeds(rpm)	540/760
Hydraulic system	3 Point Hitch	Category II& I
	Control System	Position ,draft, float
	Rear Auxiliary Remote Valves	2 groups
	Lifting Capacity(KG)	>=1191	>=1324
Other Parameters	Steering	Hydraulic Power Steering
	Dimension(mm) Canopy	3650*1572*2650
	Gorund Clearance(mm)	440
	Tires(F/R)	8-18/13.6-24 R-1T, other size optional
	Wheel Base (mm)	1845
	Wheel Track (F/R)(mm)	1200~1500/1200~1500	1200~1500/1200~1500
	Ballast Weight Front/Rear(kg)	144/80
	Min Operation Weight(kg)	2020(canopy)/2200(Cabin)
